Atomic Barra Street Chain Tensioner
Engineering Overview
SPEC-DOC

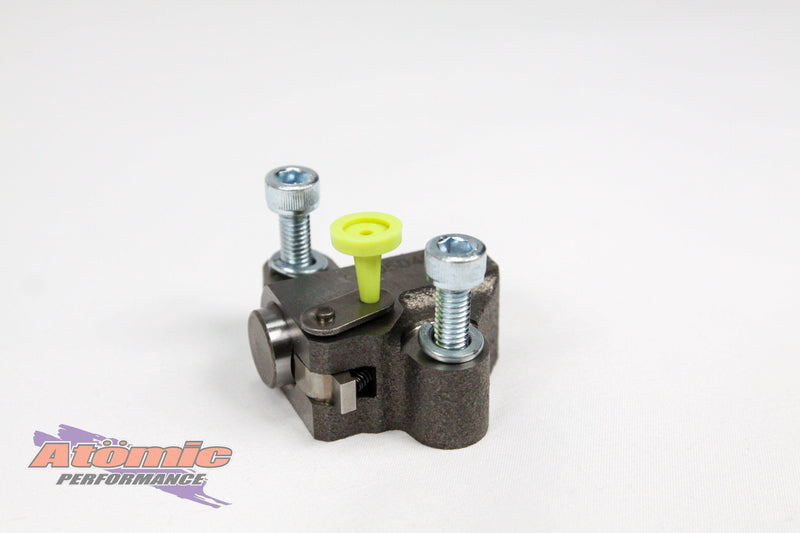

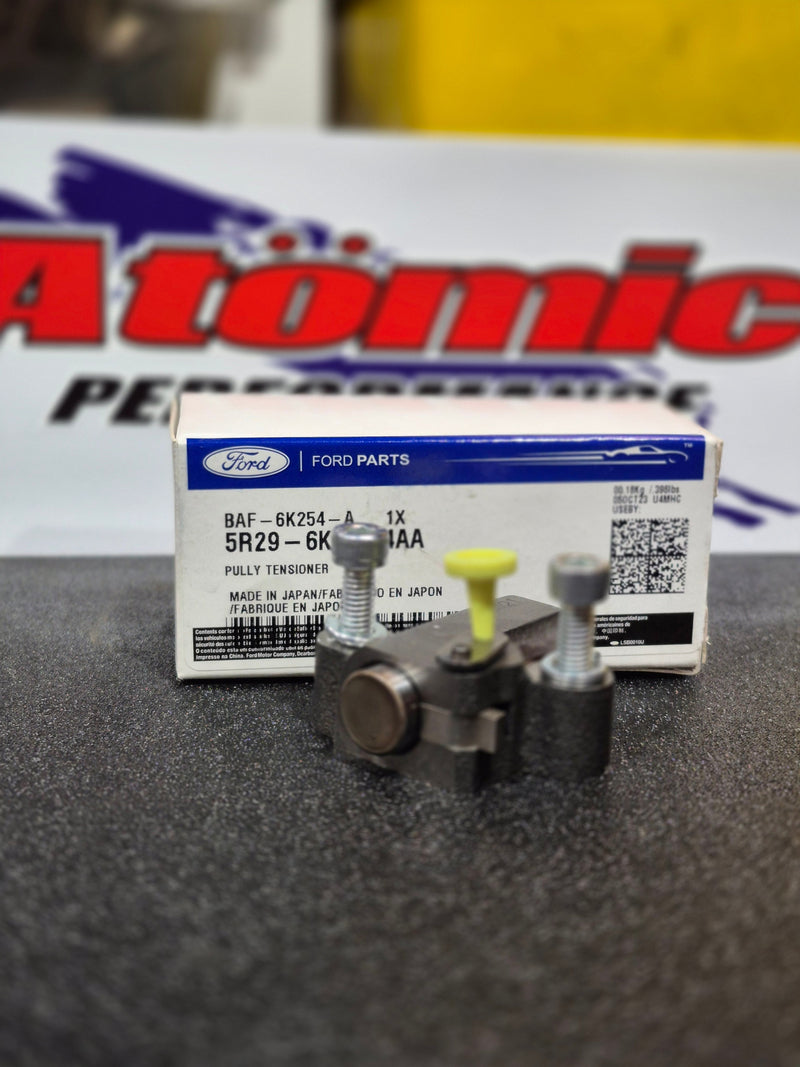

Atomic Barra Street Chain Tensioner
A Durable OEM+ Solution
The Atomic Barra Street Chain Tensioner is designed as a drop-in OEM+ replacement to offer a significantly more durable and refined solution for factory and performance street applications. Built from Billet Steel, it improves upon the factory design's kinematics, damping, and material strength.
While we have heavily improved how the tensioner regulates chain tension and dampens harmonics, it is designed to operate within factory-like parameters. For extreme setups (120+psi oil pressure, 150lbs springs, stage 5 cams, harsh limiters), please see our upcoming Atomic Race Tensioner.
Key Capabilities
- Application: Factory replacement, performance street builds.
- Oil Pressure Limits: Tuned for mild increases to factory oil pressure (Recommended Max: 80psi).
- Deck Height Limits: Tolerates +/- 1mm deck height variations.
Engineering Enhancements
Material & Alignment
- Billet Construction: Billet steel body, piston, and ratchet for vastly improved tolerances and finish.
- Revised Geometry: Improved kinematics and orientation.
- Enlarged Piston: Increased size improves contact surface and tooth size, reducing tensioner tooth wear through better engagement.
Damping & Hydraulics
- ICV & TFD: Integrated Check Valve & Tuned Flow Damping circuits to enhance absorption of chain whip.
- Cold Start Flow: Improved air bleeding speeds up damping function, especially critical on cold starts.
- Main Spring: Increased stiffness aids cold starts on modified engines.
Failsafes & Protection
- Single Tooth Ratchet: Much deeper 90° engagement avoids ratchet float and loss of engagement.
- Reduced Tooth Count: Prevents 'over-ratchet' which over-extends the piston and forces the guide to absorb chain harmonics.
- Mechanical Backstop: The body acts as a backstop in the event of ratchet or oil supply loss.
- Over-extension Protection: Added to avoid piston pump-up and guide/chain snaps.
Technical Specifications
| Component | Specification |
|---|---|
| Body | CNC Billet Steel |
| Piston | CNC Billet Steel |
| Ratchet | CNC EN Billet Steel |
| Damping Tech | ICV (Integrated Check Valve), TFD (Tuned Flow Damping) |
| Target Oil Pressure | Max 80psi |
| Recommended Guide | Atomic Billet Street Chain Guide |
⚠️ CRITICAL WARNINGS
DO NOT ADD CLICKS TO THE RATCHET. DO NOT FORCE OUT THE PISTON OR LEVER THE GUIDE. INSTALL THE TENSIONER AND PULL THE PIN ONLY.
Modification of any part of the tensioner voids the warranty. Removal of the check valve system or any other component (other than the retention pin which is removed during install) will void warranty.
Known Setup Limitations
- High Oil Pressure: Setups exceeding 100psi will experience timing system issues and will require our upcoming Race Tensioner.
- Extra Tall Deck Height: Setups with thick head gaskets and unskimmed blocks/heads may require guide modification to allow installation.
- Usage: Avoid high RPM with cold oil pressure. Use gentle rev limiters.
🔧 Installation Advice
- Loctite all mounting bolts.
- Prime oil system by cranking prior to start to fill the head and tensioner with oil.
- Normal Operation: The tensioner may make a buzzing noise for several seconds after first start as air bleeds out of the system.
- DO NOT attempt to add more tension to the guide manually.
🔍 Troubleshooting
- Cannot install (piston fully in): Deck height is likely out of the designed range. Contact Atomic with your head gasket and head/block specs.
- Loud rattle/tap after first start: If noise persists and worsens with RPM, you may have left the retention pin in behind the ratchet mechanism. The pin MUST be removed prior to startup.
- Persistent tapping/buzzing: If you have good oil feed and the pin is removed, you are likely experiencing normal NVH from the Barra timing system. The Street tensioner improves dynamics, but is limited by other factory chain paths. If the noise sounds abnormal or particularly harsh, it may be the guide hitting the tensioner body. Contact Atomic for advice.
