Atomic Big Ears Sump – Ford Barra DOHC | +2.5L Capacity

Atomic Big Ears Sump – Ford Barra DOHC | +2.5L Capacity | Std Depth | Wet Sump Solution

Description:

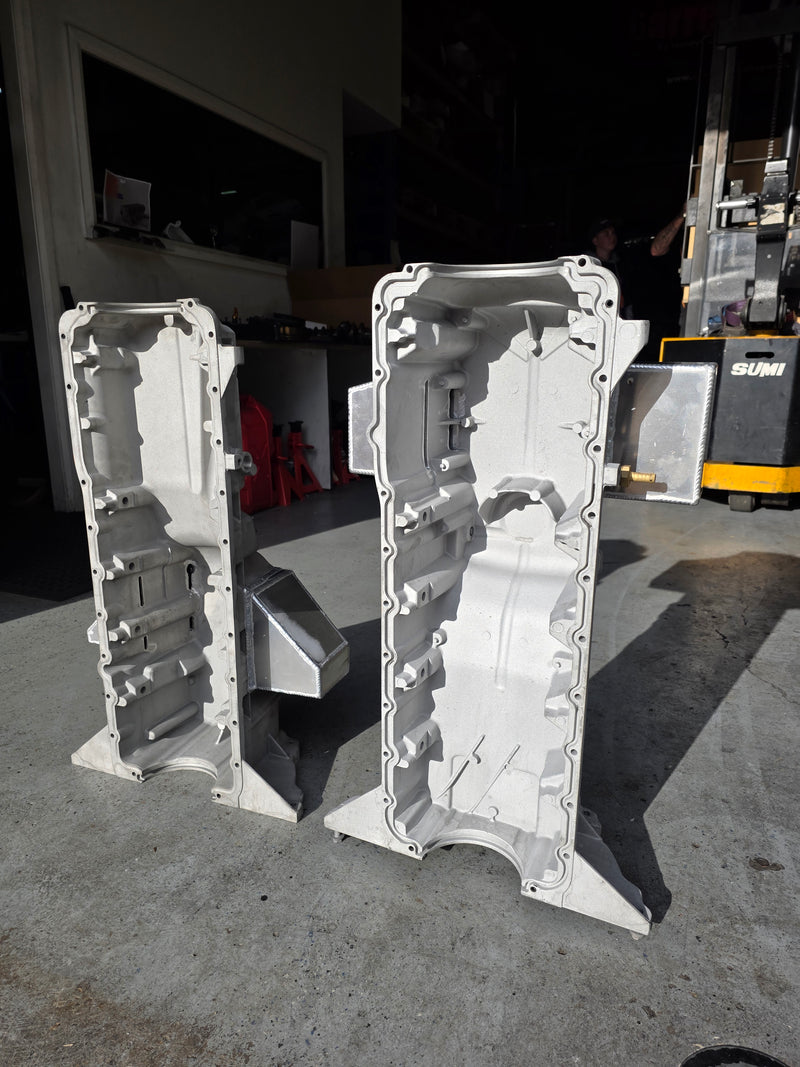

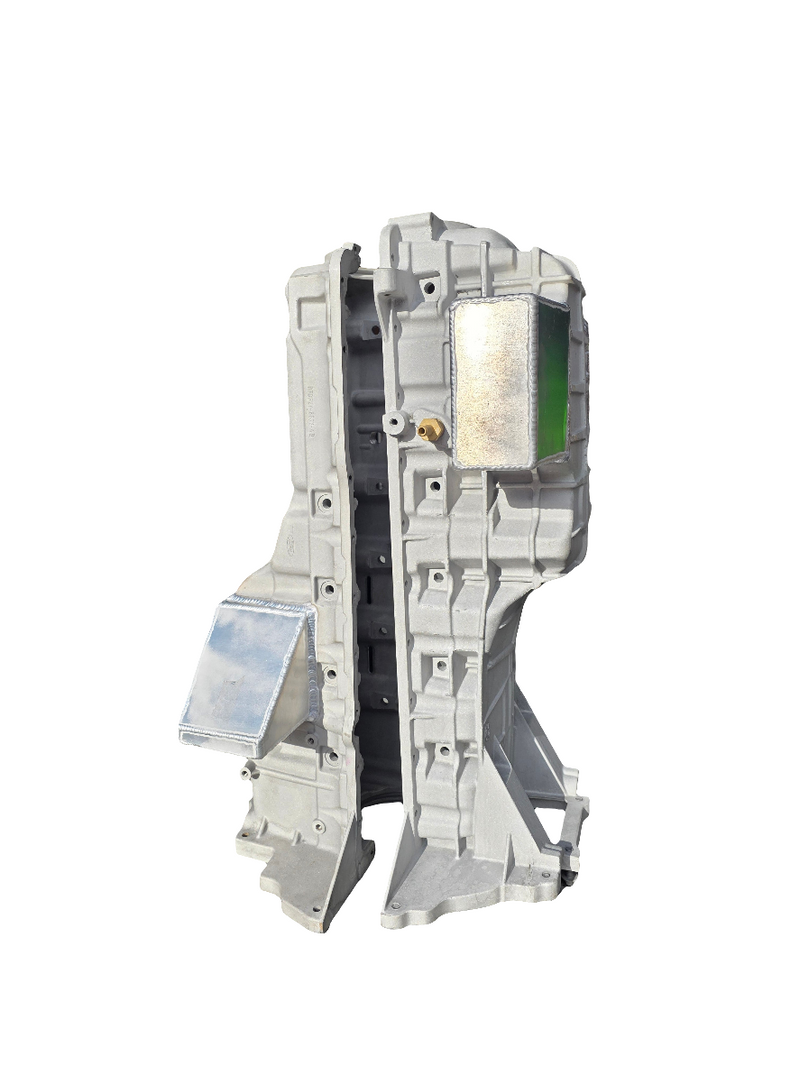

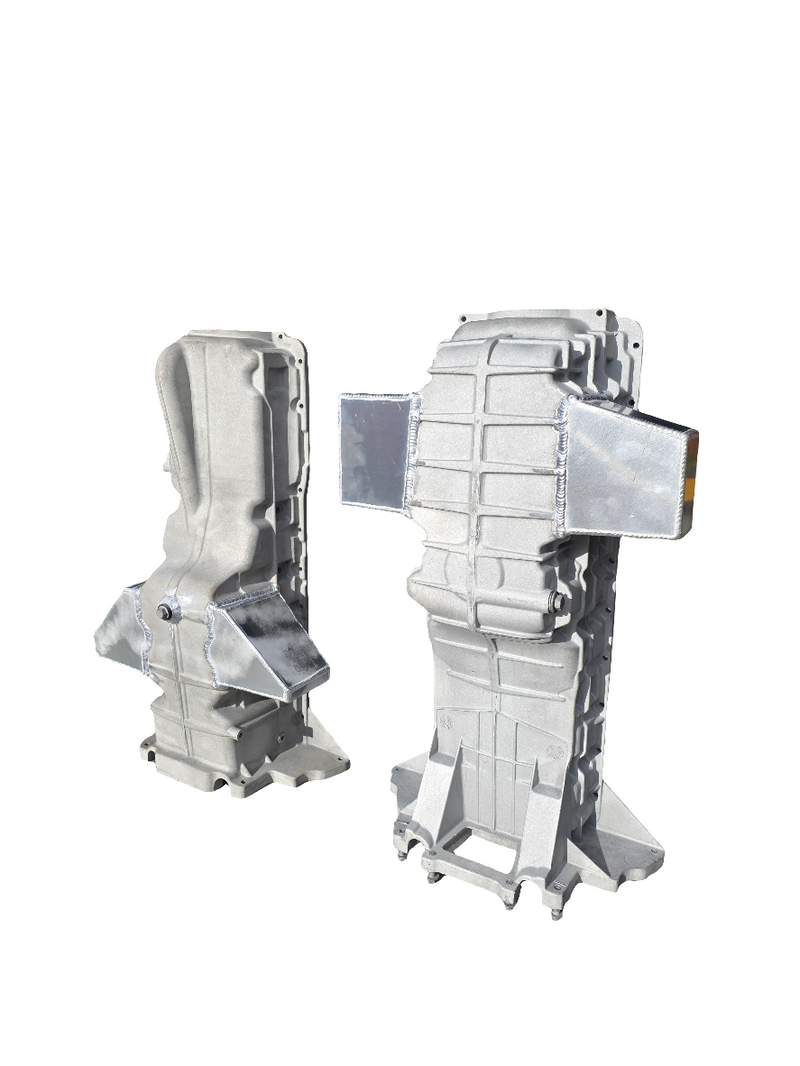

When building a high-performance Ford DOHC 6-cylinder (Barra) engine, oil control is essential. The Atomic Big Ears Sump Upgrade boosts oil capacity and improves control without compromising ground clearance — making it the perfect solution for serious street, drag, and circuit builds.

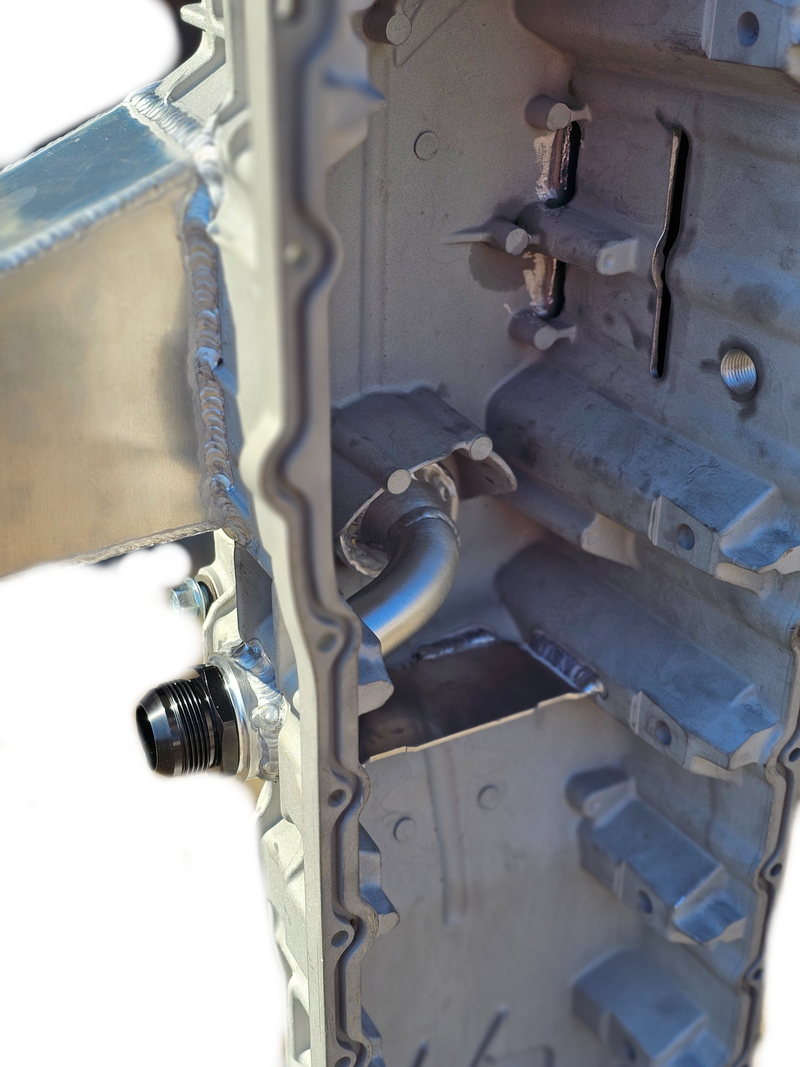

With an approximate +2.5L increase in oil volume, this standard-depth sump features internal baffling to reduce oil surge under cornering and acceleration. It’s also available with an optional pickup tube for external wet sump pumps, making it ready for serious oiling system upgrades.

✅ Key Features:

✅ Suits all Ford DOHC 6-cylinder engines (Barra series)
✅ Increases oil capacity by approximately 2.5 litres
✅ Standard sump depth – retains OEM ground clearance
✅ Reduces oil surge under hard driving
✅ Perfect for performance street, drag, and race use
✅ Fabricated to work with factory-style oil pump systems
✅ Proven in engines from 400kW+ to well over 1000hp

🛠️ Important Fitment Note – For Use with 16mm Girdles:

🔧 Sump modification is required when used with 16mm main girdles.
The rear four main stud nuts will typically contact the sump floor.
To address this, we:

• Drill clearance holes

• Welding in alloy cups (see 3D model in product images)
  This modification ensures correct fitment and oil-tight sealing.

📦 What’s Included:

• 1x Atomic Big Ears High-Capacity Baffled Sump
