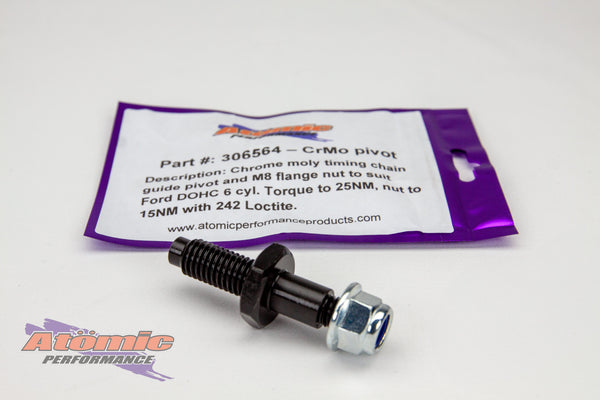

Atomic Barra Billet Timing Chain Guide Pivot Bolt

Atomic Billet Timing Chain Guide Pivot Bolt – Ford Barra DOHC | Chromoly Steel

Description:
In high-performance Ford Barra DOHC 6-cylinder engines, precision timing chain control relies on components that won’t flex, walk, or fail under pressure. The Atomic Billet Timing Chain Guide Pivot Bolt replaces the factory curved guide pivot on the driver’s (exhaust) side with a CNC-machined chromoly upgrade, built to withstand the demands of high RPM, big boost, and stiffer valve springs.

Used in all Atomic timing kits, this bolt provides rigid, secure support for the curved guide — ensuring proper chain alignment and long-term reliability. It comes complete with a matching lock nut and is compatible with all Ford DOHC 6-cylinder engines.

✅ Key Features:

✅ Suits all Ford DOHC 6-cylinder engines (Barra & Intech)
✅ Installs on driver’s/exhaust side curved timing chain guide
✅ CNC-machined from chromoly steel for high strength and durability
✅ Includes matching lock nut
✅ Prevents guide movement and ensures precise chain tracking
✅ Used in Atomic engines from street builds to 1500+hp race cars

🛠️ Installation Notes:

✔️ Apply Loctite 222 (low strength) to threads
✔️ Torque to 19 ft-lbs / 25 Nm
✔️ Direct replacement – works with OEM and aftermarket guides

📦 What’s Included:

• 1x Chromoly Timing Chain Guide Pivot Bolt

• 1x Lock Nut
