ULTRA TOUGH Diesel-Spec Sealing for High Boost Barras
The Problem
Standard Multi-Layer Steel (MLS) gaskets are great, but under extreme cylinder pressures (high boost), the layers can separate leading to combustion leaks. In a high-horsepower Barra, a standard gasket is often the fuse that blows first.
💡 DID YOU KNOW?
"MLS-D" stands for Diesel Style. Unlike a standard MLS gasket where layers are stacked, an MLS-D gasket folds the outer layers back over the center layer at the cylinder bore. This creates a super-strong "Ring" seal that is virtually impossible to blow out.
The Atomic Solution
We've standardized the MLS-D Head Gasket across our premium gasket range. At 1.00mm thick with a folded bore architecture, this gasket offers the sealing capability of a wire O-ring setup without the need for expensive block machining. It’s the ultimate "drop-in" upgrade for any boosted Ford 6. These have been used beyond 1500hp and 45psi of boost without issues and do not deteriorate and weep over time like alternative gasket solutions capable of sealing 1500hp.

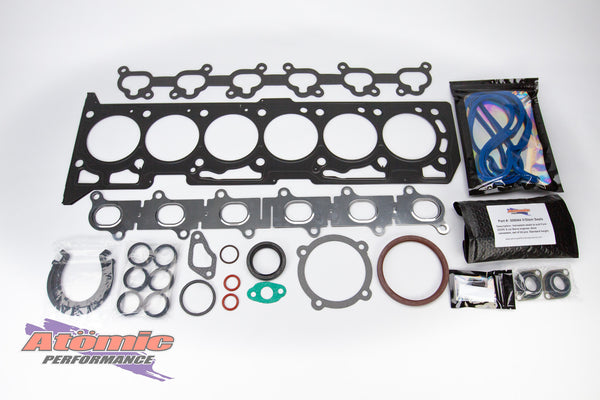

Complete Engine Gasket Kit including the MLS-D Head Gasket.
Detail View: The folded "Fire Ring" layer unique to MLS-D gaskets.
2. Complete Engine Seal Solution
We don't just sell you a head gasket; we supply a comprehensive rebuild solution. Our kits include every seal needed to button up a Barra properly.
Viton Rear Main Seal: High-temp material to prevent the dreaded rear main leak.
SLS Turbo Gaskets: Metal shim turbo drain-back gaskets that won't degrade under heat.
VRS Components: Includes all rocker cover seals, spark plug tube seals, and stem seals for a full top-end refresh.
Tech Specs
Head Gasket Type: MLS-D (Multi-Layer Shim - Diesel Folded Style) Thickness: 1.00mm Compressed Layers: 3-Layer Construction with Fire Ring Fold Compatibility: Available for BA, BF, and FG/FGX Models (Select Model Above)
⚠️ Fitment Guide
Please ensure you select the correct model year for your engine, as front cover and sump seal variations exist:
