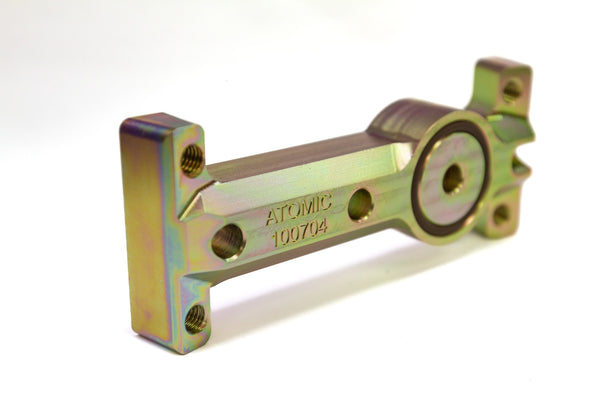

Atomic Barra On-Car Valve Spring Change Tool
Engineering Overview
SPEC-DOC
On-Car Valve Spring Tool
No Head Removal Required
The Atomic Valve Spring Tool is the **original Barra on-car spring compressor tool** designed specifically for Ford Barra DOHC 4.0L engines. Now refined and improved for 2026, this latest version significantly improves clearance and accessibility and features key upgrades for easier use, faster spring swaps, and better fitment — all while retaining the competitive price and rugged durability that made it a workshop favourite.
300M Steel makes the difference. Our latest compression cups are 3D printed from 300M Aerospace Steel. This ultra-strong material allows for a significantly slimmer wall profile, giving you vastly improved visibility and magnet access to the valve collets without sacrificing the strength needed for 140lb+ race springs. Is it overkill? Yes. Is it cool? Also yes!
The Atomic Solution
Changing valve springs usually means removing the head — costing you a head gasket, head bolts, and hours of labour. This tool eliminates that hassle entirely by using compressed air to hold the valves shut while you swap components. It is the fastest, safest way to upgrade to heavy-duty springs or service worn stem seals.
Why Choose Genuine Atomic Tooling?
Latest Improvements (2026)
- Slimmer, tapered tool body for better access
- 3D printed 300M steel compression cups for better access
- Slimmer profile for rear cylinders
- Improved dowel slot for better fitment
Barra Optimized
- Fits all BA, BF, FG, FGX 4.0L
- Clears rear cowl/firewall issues
- Won't damage stems or retainers
- Ideal for high-pressure race springs
Workshop Grade
- Genuine patented design
- Spare parts available
- Durable 300M Steel construction on compression cups
- Lifetime service tool
Technical Specifications
Part Number: 100704
Cup Material: 3D Printed 300M Aerospace Steel
Sealing: Integrated Viton O-Ring
Application: Ford Barra DOHC 4.0L (All Models)
📦 What's Included
- 1x Atomic On-Car Valve Spring Tool Frame
- 1x 300M Steel Compression Cup
- 1x Magnetic pick up tool
- 1x Nitto Air Fitting
- 1x Viton o-ring for head seal
- 3x M6 thumb screws to bolt tool to head
- 4x long M8 bolts to compress springs
⚠️ Critical Usage Notes
- Constant Air Supply: Ensure a constant supply of up to 90-100psi compressed air to hold valves shut. If air pressure is lost, the valve may drop into the cylinder. Start pressure low and increase until you are able to compress the spring and unlock the collets
- TDC Precaution: We strongly recommend bringing the piston of the cylinder you are working on to Top Dead Center (TDC) as a safety fail-safe to avoid a valve falling into the cylinder.
- Taper Lock: A gentle tap on the retainer with a socket prior to using the tool can help break the taper lock on old collets, making removal much smoother.
-
Please inspect your valvetrain parts as you remove and reinstall them. Use this time to check for wear marks, burrs, debris or other damage.
