Atomic Barra Billet Crank

Regular price $5,999.00 AUD
Sale price $5,999.00 AUD Regular price
Sale Sold out
Unit price
/per
Tax included.
Stroke Length:
This is a pre order item. We will ship it when it comes in stock.
Atomic BS970/EN26 Billet Crankshaft

Atomic BS970/EN26 Billet Crankshaft

Aero Counterweights | Unmatched Strength for 2000HP+

The Ultimate Foundation for Extreme Power

When you're pushing the limits of the Barra platform—chasing 2000hp, massive boost, and stratospheric RPM—the factory crank becomes the fuse. The Atomic BS970/EN26 Billet Steel Crankshaft is engineered to eliminate that weakness, providing a bulletproof rotating assembly foundation that handles extreme torsional loads with minimal flex.

💡 DID YOU KNOW?

Aerodynamics matter inside your engine. At 8000+ RPM, the crankshaft is spinning in a hurricane of oil mist and windage. Standard counterweights act like paddles, whipping the oil and robbing horsepower. Our Full Aero Counterweights are profiled to slice through this windage, reducing parasitic drag and stabilizing the rotating assembly at high RPM.

The Atomic Solution

Crafted from premium BS970/EN26 Billet Steel, this crankshaft offers uncompromising tensile strength and fatigue resistance. It features straight-shot oiling for direct bearing lubrication, nitrided journals for exceptional wear resistance, and is precision machined to exacting tolerances. It is fully compatible with OEM blocks, the new Atomic Cast Iron block, and aftermarket billet blocks.

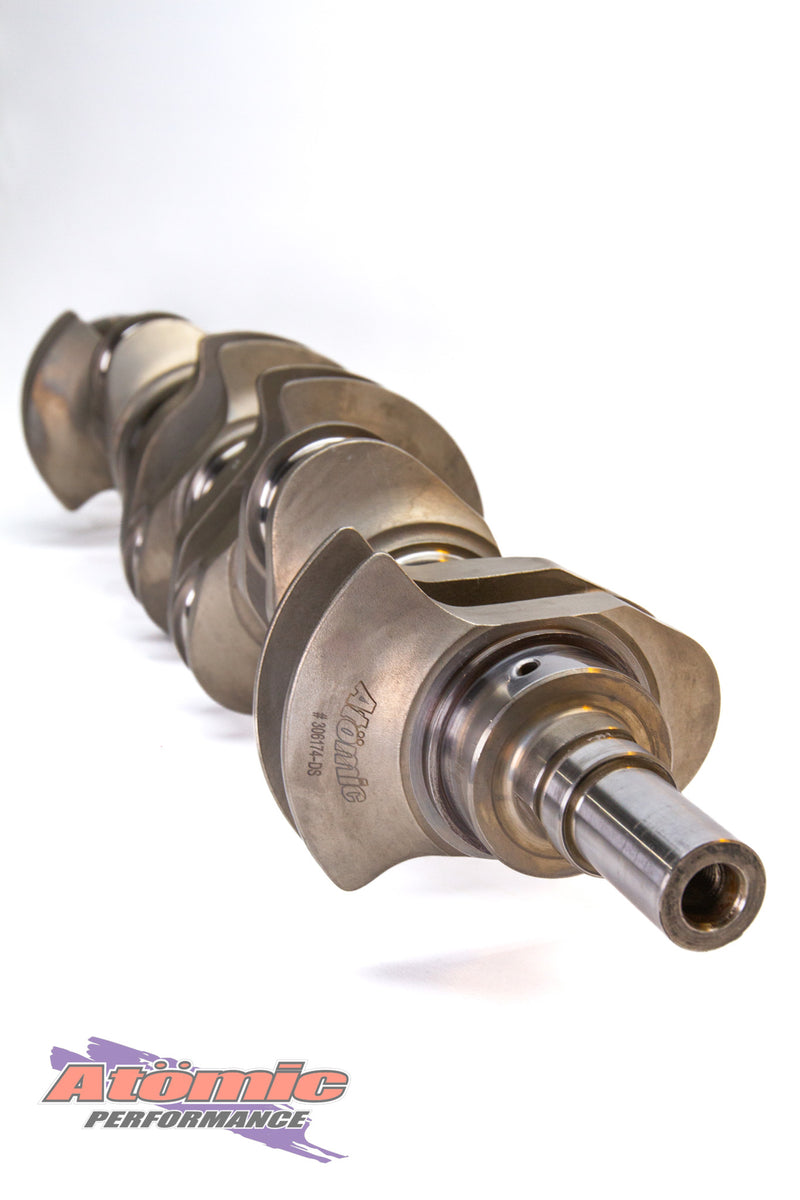

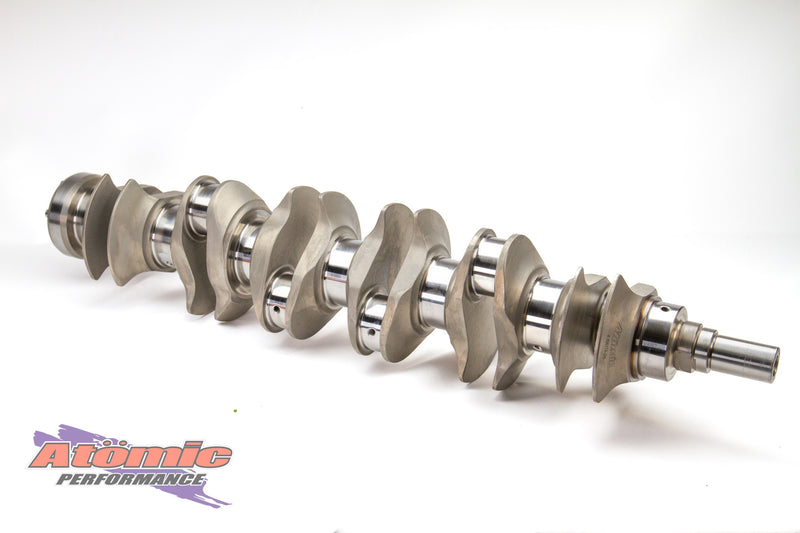

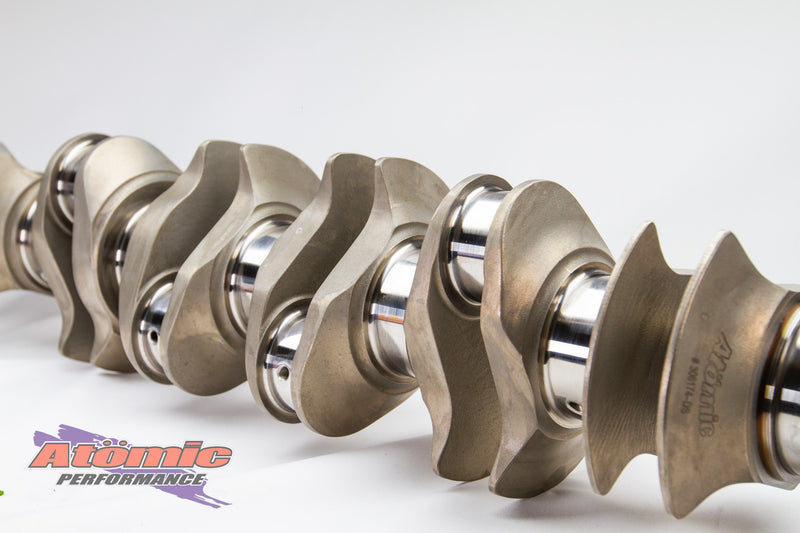

Atomic Billet Steel Crankshaft
EN26 Billet Steel with Aero Counterweights.

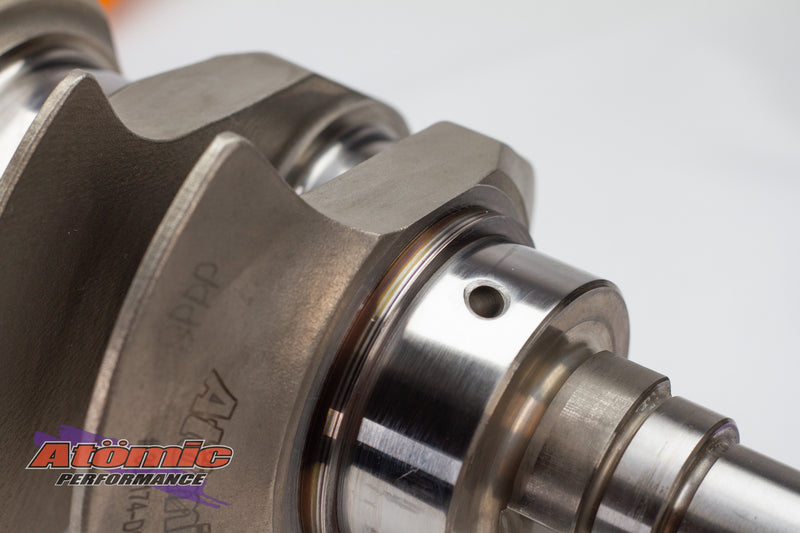

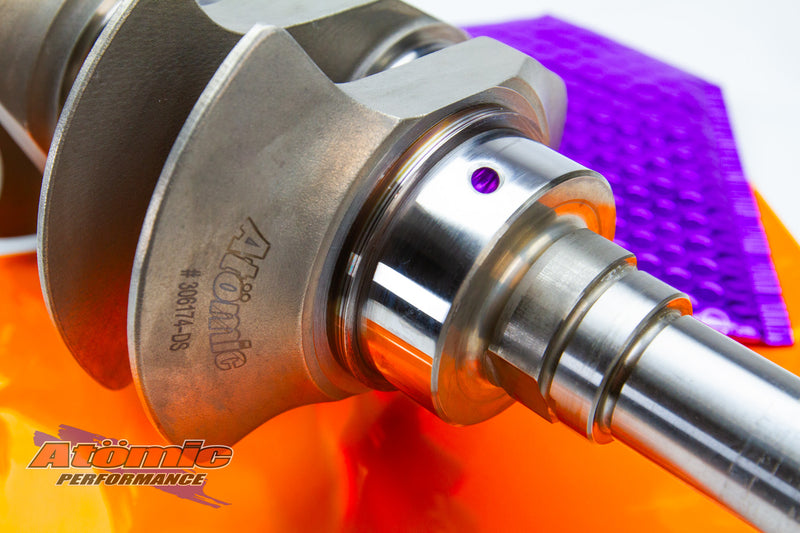

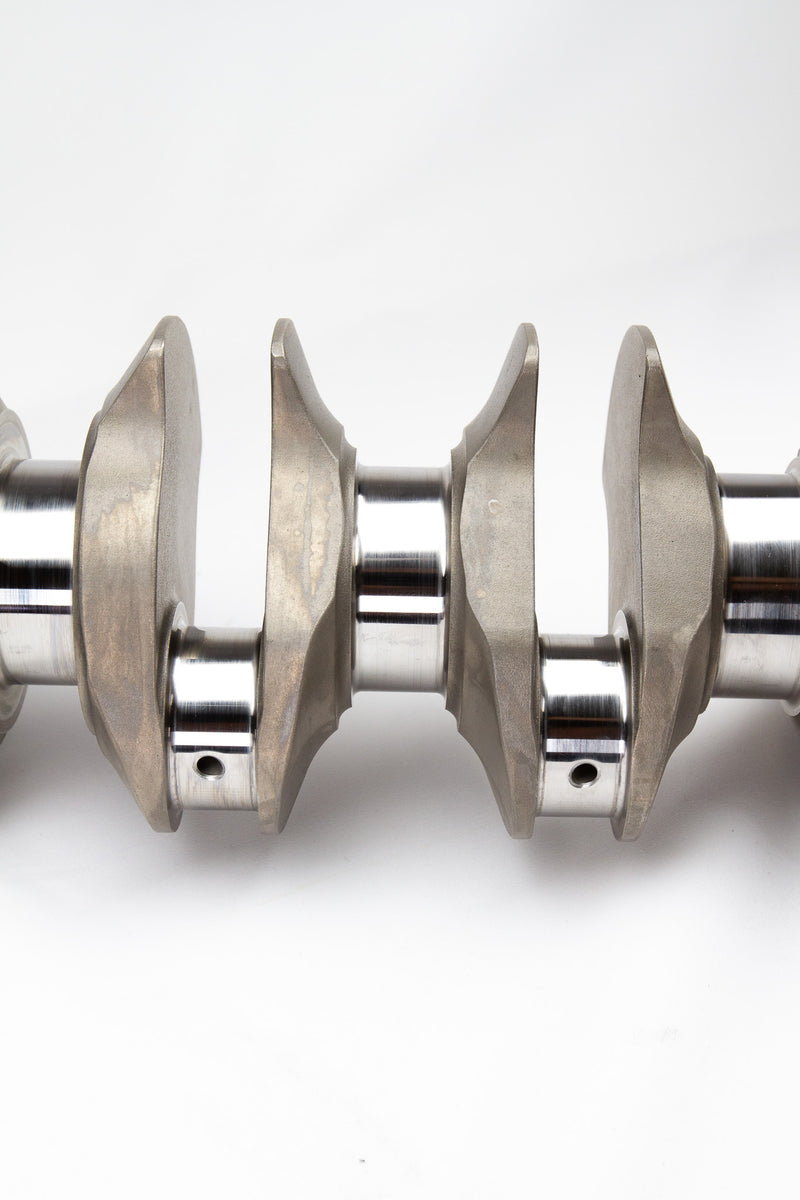

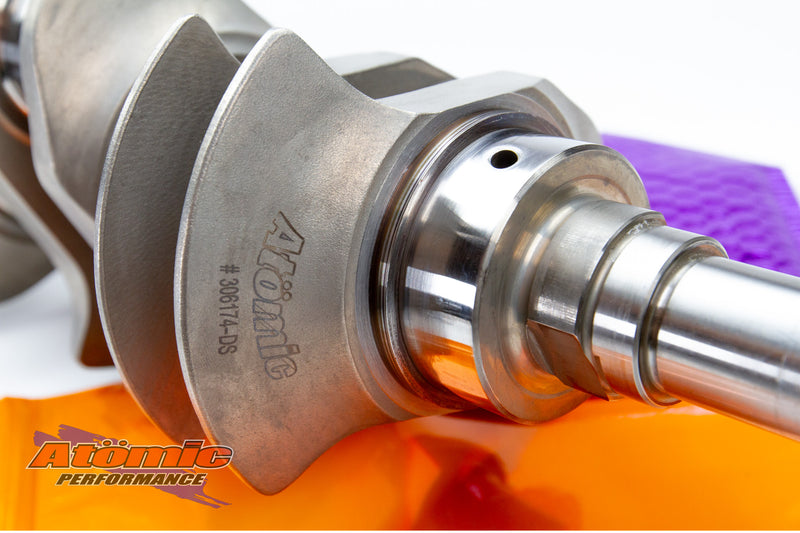

Counterweight and Journal Detail
Polished Journals & Straight Shot Oiling.

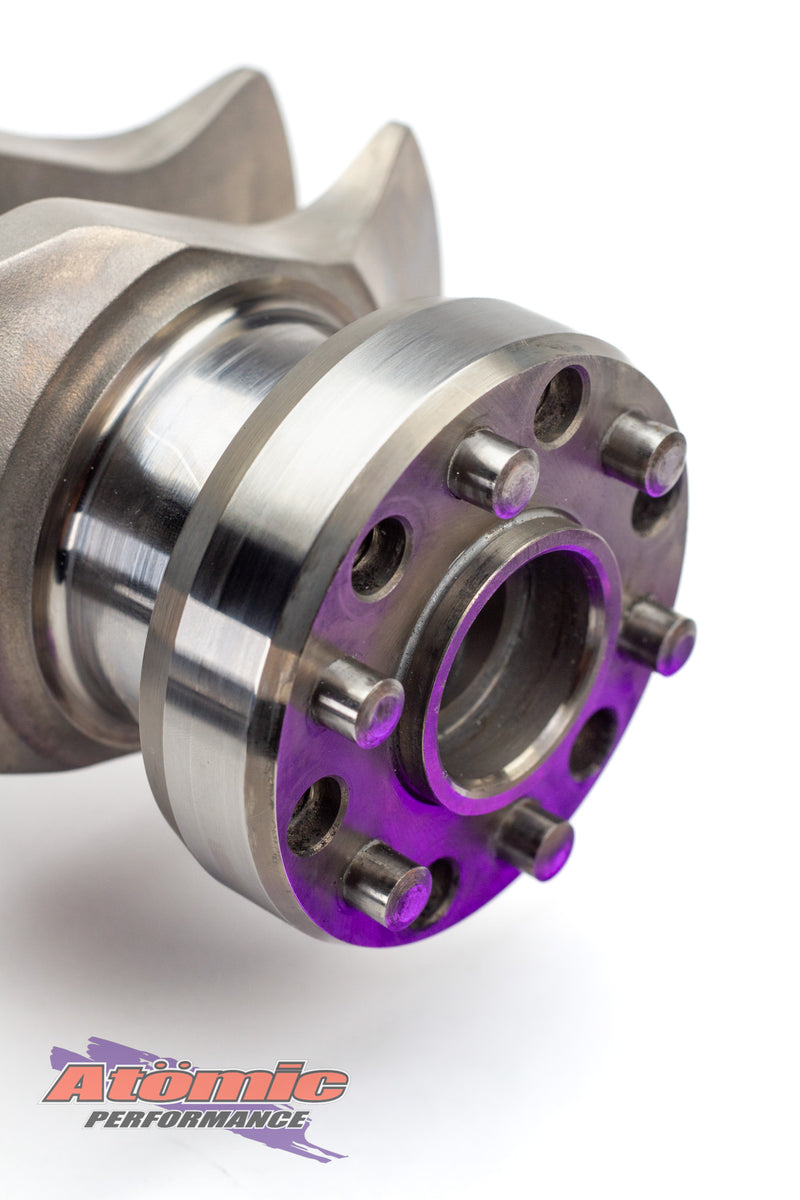

Additional Crank Detail

Engineered for Reliability

We designed this crank to reduce strain on every other component in your engine.

  • Reduced Flex: The rigidity of EN26 billet steel reduces torsional movement, saving your main bearings, main caps, and oil pump gears from harmonic destruction.
  • Straight Shot Oiling: Ensures direct, consistent oil flow to the conrod bearings, critical for survival at high RPM.
  • Nitrided Finish: A surface hardening process that provides exceptional wear resistance for long journal life.

Tech Specs

Material: BS970/EN26 Billet Steel
Stroke: Standard 99.2mm
Journal Finish: Polished & Nitrided
Counterweights: Full Aero Profile
Application: Ford Barra DOHC (SOHC Intech with mods)

⚠️ Engineering Note

  • Balancing: As with any rotating assembly upgrade, this crankshaft must be balanced with your specific rods, pistons, flywheel, and balancer before final assembly.
  • Bearings: We recommend high-performance race bearings (e.g., ACL Race Series) to match the journal hardness and load capabilities of this crank.
  • Compatibility: Direct drop-in for DOHC Barra. Can be used in SOHC Intech engines with specific modifications (contact us for details).
