Atomic Cosworth F1 Series Forged Pistons – Ford Barra DOHC | 92.30mm Bore | Rings, HD Pins & Locks Included
Description:
When it comes to handling the punishment of extreme boost, high RPM, and brutal cylinder pressure, no component takes more abuse than the piston. That’s why Atomic partnered with the legendary Cosworth UK to develop a piston designed specifically to thrive in the most demanding Ford Barra DOHC 6-cylinder builds.
The result is the Cosworth F1 Series Forged Piston — the ultimate in Barra piston design. Forged from 2618 aerospace-grade alloy, these pistons feature six internal struts to support the crown and pin bosses, Xylan-coated skirts for reduced friction and wear, and a fully polished crown to reflect combustion heat away from the piston and into the chamber.
Built for a finished bore size of 92.30mm, this kit includes Cosworth high-strength rings, heavy-duty floating pins, and locks. Proven beyond 1133RWKW and designed to absorb 8–9 tonnes of combustion force up to 60 times per second, these pistons are the foundation of the toughest Barra builds in Australia.
✅ Key Features:
✅ Suits Ford Barra DOHC 4.0L 6-cylinder engines (BA–FGX)
✅ Cosworth F1 Series design – engineered in the UK for Atomic
✅ 2618 forged aluminium – aerospace grade for extreme strength and thermal resistance
✅ Suits 92.30mm finished bore size

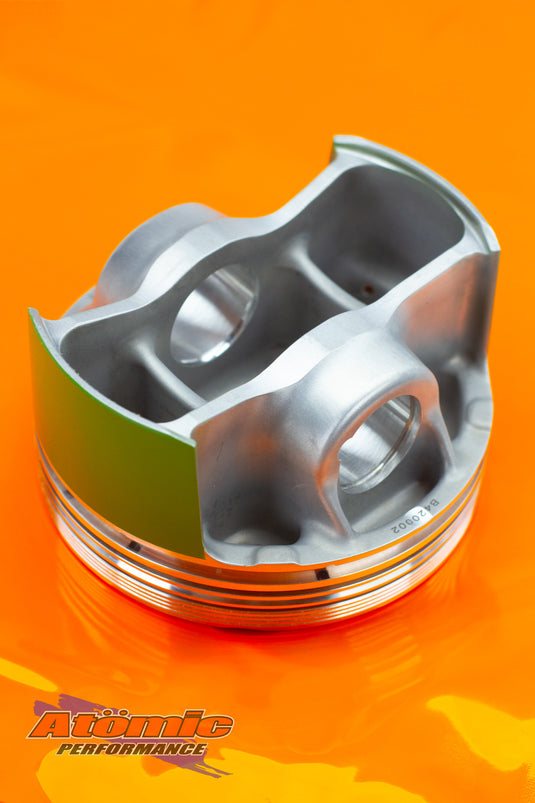

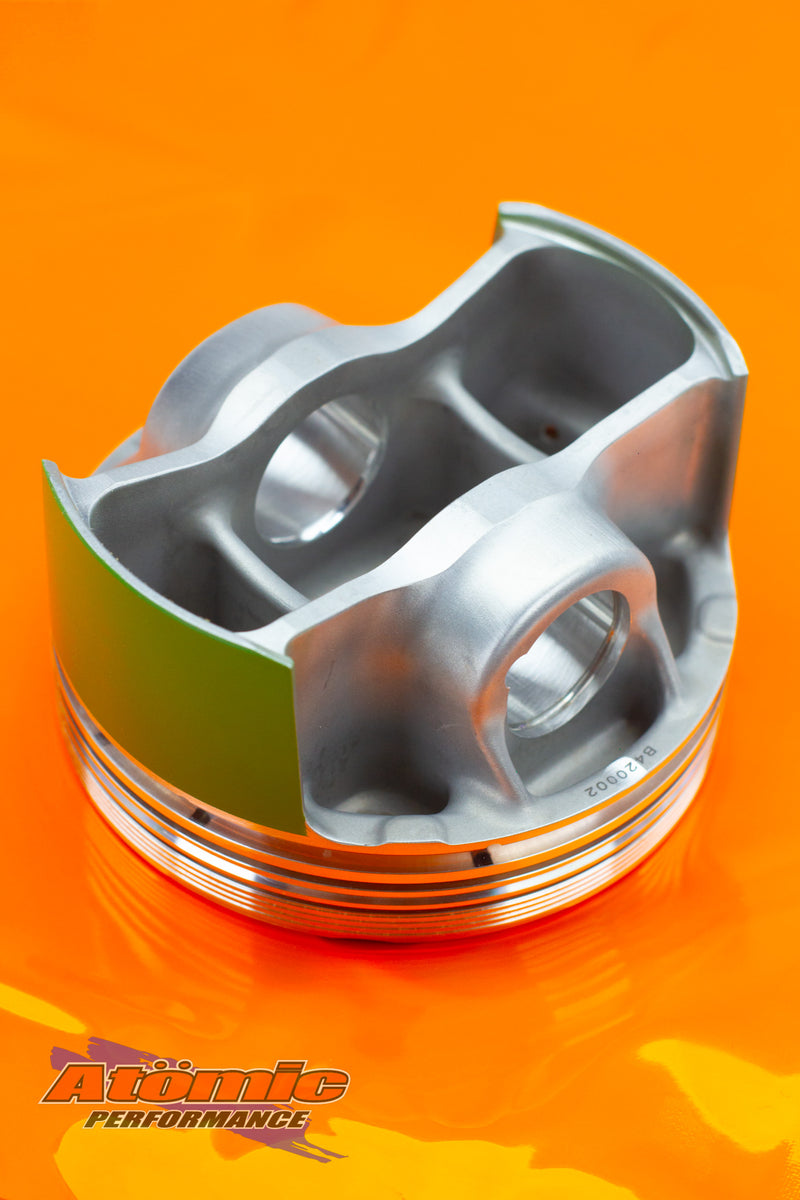

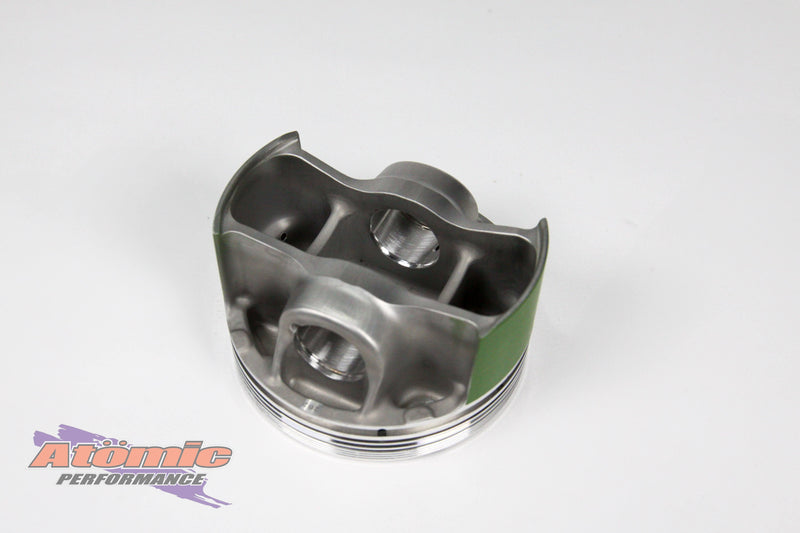

✅ Xylan-coated skirts – reduces wear, friction, and skirt collapse

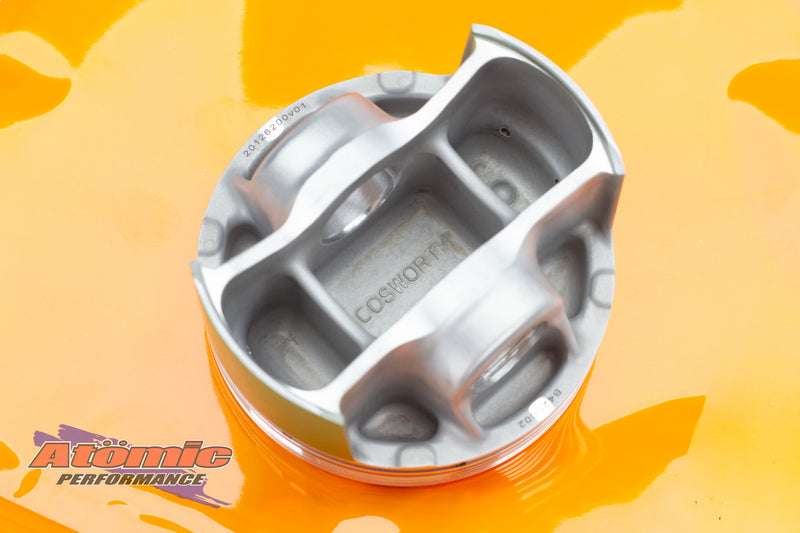

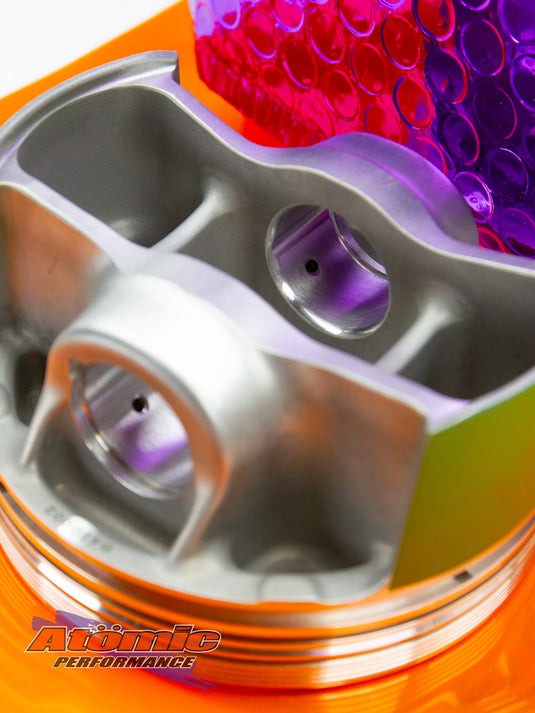

✅ 6 internal struts support crown and pin bosses for high load stability

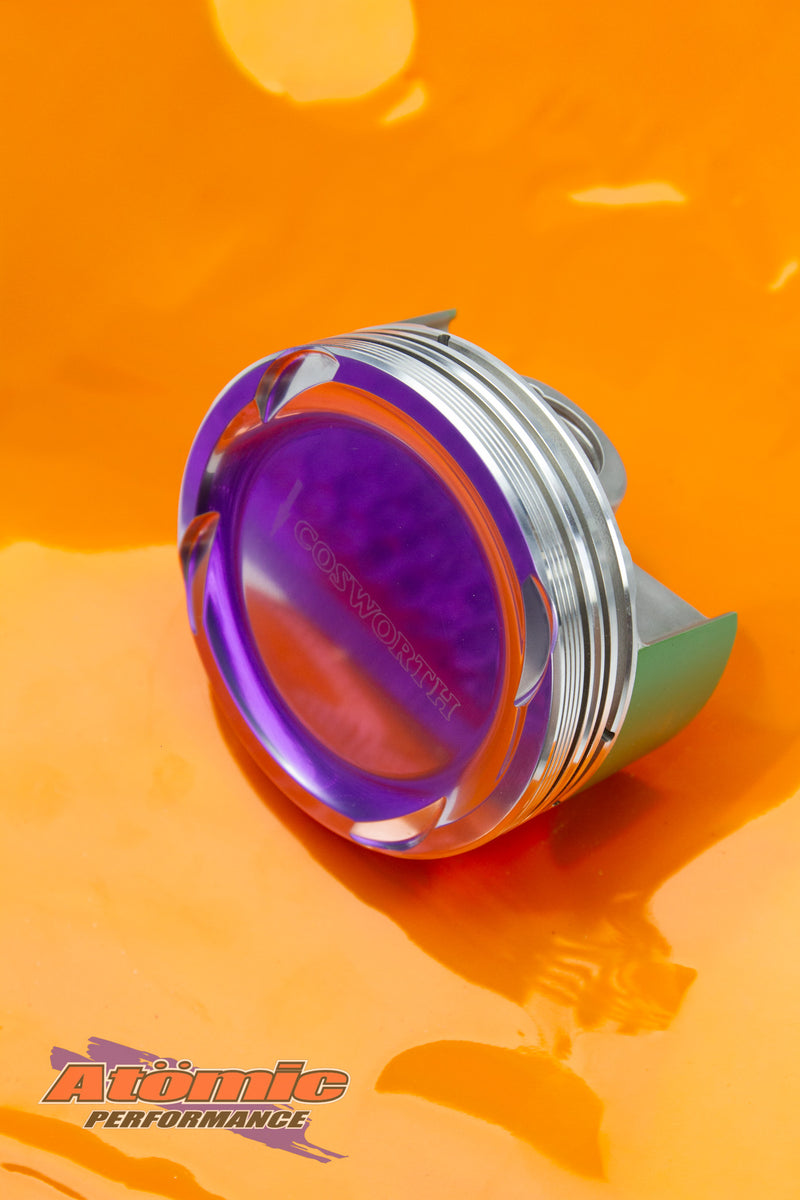

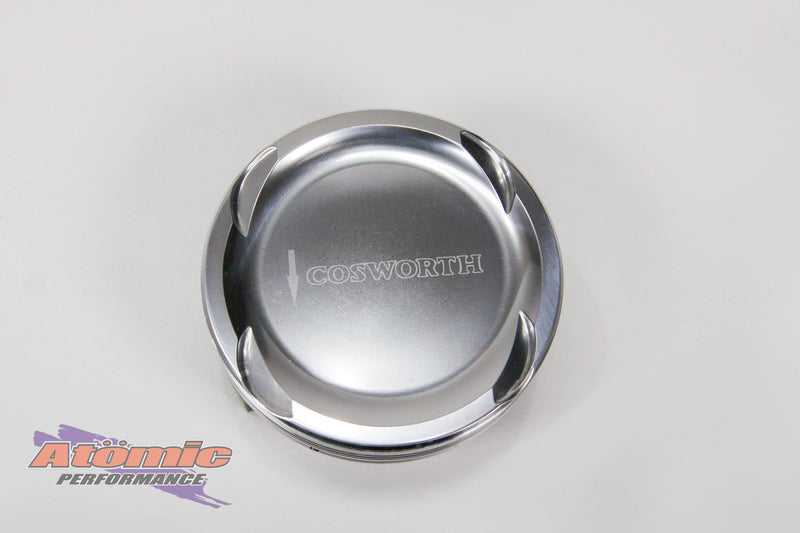

✅ Fully polished crown – reflects heat, resists detonation

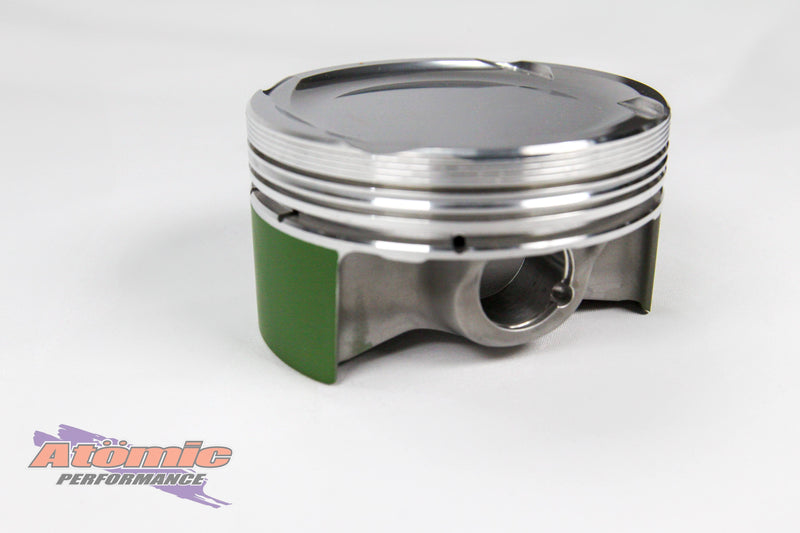

✅ Includes Cosworth high-performance ring set – thick rings for improved seal and heat transfer
✅ Comes with heavy-duty floating wrist pins and locks
✅ Proven to handle 1000–1500+hp, tested at 1133RWKW @ 49 psi
🛠️ Why Choose Atomic Cosworth F1 Series Pistons?
✔️ Engineered by Cosworth for maximum performance and longevity
✔️ Solves issues with crown collapse, skirt cracking, and ring land failure
✔️ Maintains exceptional ring seal and oil control even after years of abuse
✔️ Precision-fit and heat-resistant for detonation-prone, high-cylinder pressure environments
✔️ The exact pistons used in Atomic's extreme Barra builds
📦 What’s Included:
-
Set of 6 Cosworth F1 Series 2618 Forged Pistons
-
92.30mm finished bore size
-
Cosworth high-strength ring set
-
Heavy-duty floating wrist pins and locks
-
Xylan skirt coating
-
Optional: Custom compression height or coatings (on request)
