Atomic Barra Heavy Duty Timing Chain Kits
Engineering Overview
SPEC-DOC
Atomic Heavy Duty Timing Chain System
Choose Your Configuration

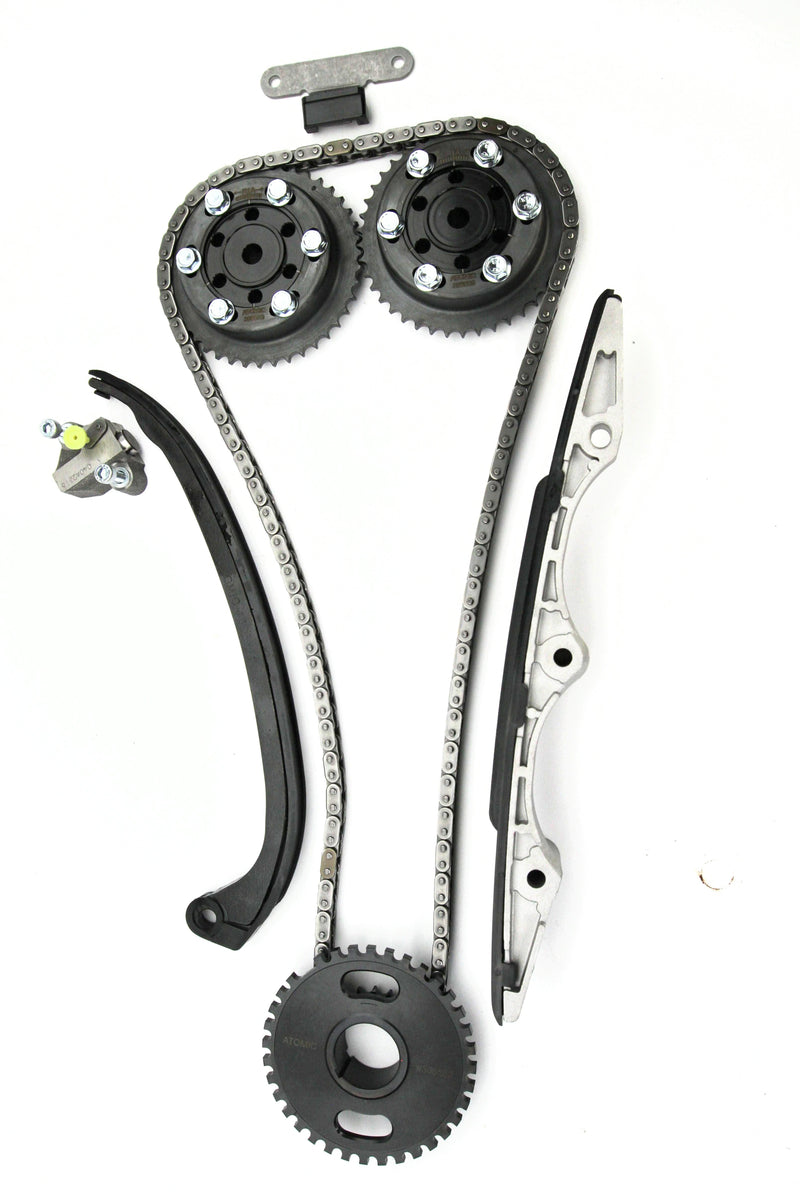

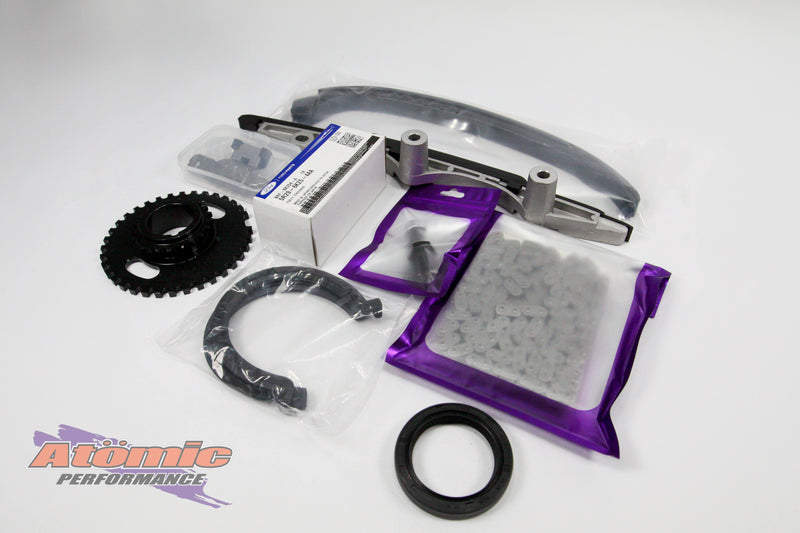

Complete Kit (-C) Most Popular
The Total Solution. Recommended for most engine rebuilds and upgrades.
- Billet Curved Guide
- HD Timing Chain
- Billet Chromoly Pivot Bolt
- Plus: Billet Crank Sprocket
- Plus: Atomic Street Billet Tensioner
- Plus: All upper/straight Guides, Bolts, Seals & Gaskets

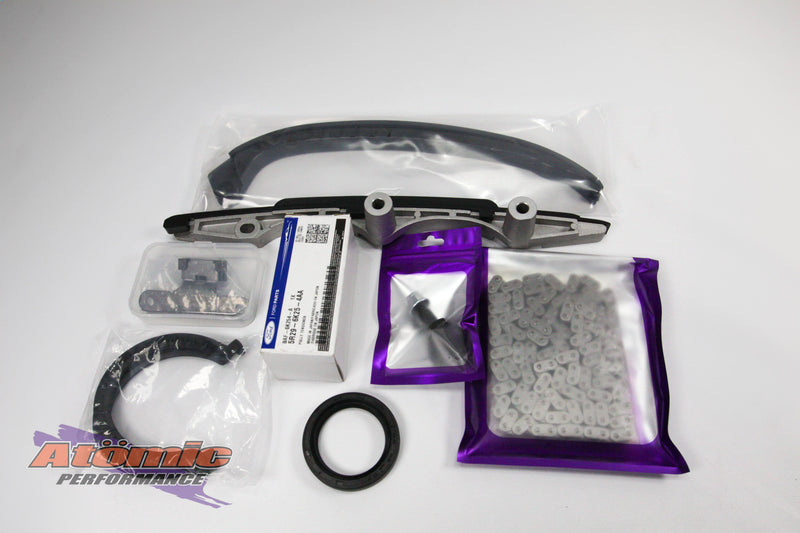

Basic Kit (-B)
The Essentials Upgrade for budget-conscious builds.
- Billet Curved Guide
- HD Timing Chain
- Billet Chromoly Pivot Bolt
Core Kit (-P)
For builders with their own sprocket & tensioner.
- HD Timing Chain
- All Guides (Curved, Top, Straight)
- Billet Chromoly Pivot Bolt
-T Kit (Tensioner)
Targeted upgrade featuring the billet tensioner.
- HD Timing Chain
- Billet Curved Guide & Chromoly Pivot Bolt
- Plus: Atomic Street Billet Tensioner
-S Kit (Sprocket)
Targeted upgrade featuring the billet crank sprocket.
- HD Timing Chain
- Billet Curved Guide & Chromoly Pivot Bolt
- Plus: Billet Crank Sprocket

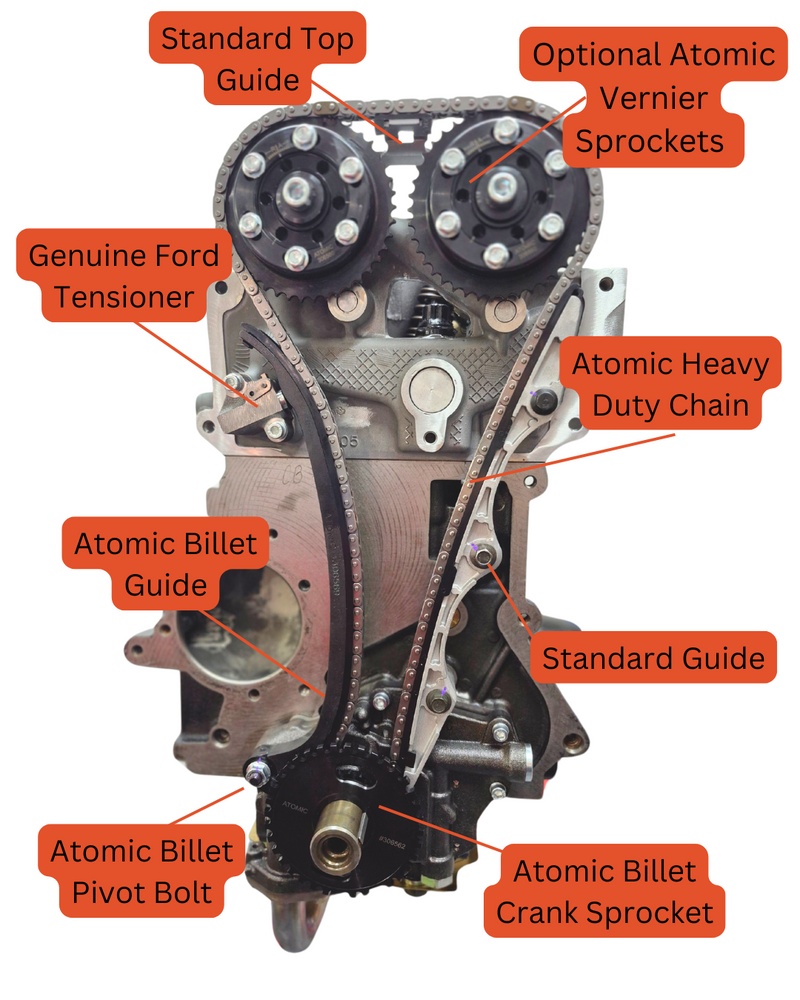

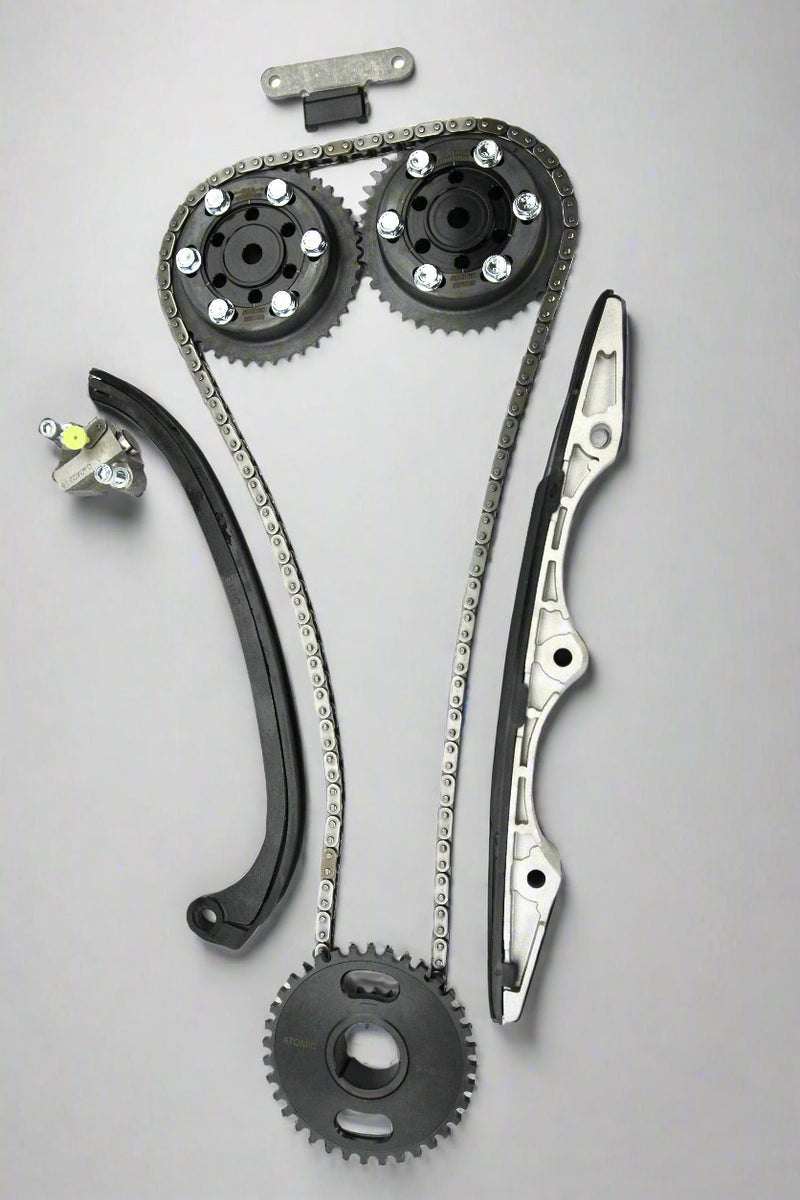

The Atomic Timing Ecosystem
A fully engineered, race-proven timing solution. We don't just replace parts; we upgrade the entire architecture to survive everything from a stock rebuild to a 2500hp monster without sacrificing NVH or reliability.
Atomic Street Tensioner
Billet steel replacement featuring Integrated Check Valve and Tuned Flow Damping to regulate chain tension and absorb harmonics.
View Product
Heavy Duty Timing Chain
Approximately 2x the strength of the factory chain. Features high-polish links for reduced noise, wear, and system vibration.
View Product
Billet Parabolic Guide
Precision machined billet steel with reprofiled tip geometry and a high-clearance inner curve to prevent plastic failure and cover contact.
View Product
Billet Crank Sprocket
Case-hardened heat-treated steel manufactured to tight tolerances to reduce vibration and wear caused by factory misalignment.
View Product
Chromoly Pivot Bolt
Billet Chromoly pivot with a nyloc nut ensures it never backs out under vibration. Significantly reduces guide play to avoid misalignment.
View Product
Fixed Guides & Seals
High-quality replacements for the fixed and top guides, ensuring the complete chain path is refreshed. Includes necessary seals and bolts.
⚠️ Critical Engineering & Installation Notes
- Installation: Correct timing is absolutely critical. Failure to follow the included instructions can lead to severe engine damage. DO NOT MANUALLY ADD TENSION TO THE GUIDE! Let the hydraulic tensioner do its job.
- Head Gasket Thickness: This kit is designed for head gaskets 1.0mm thick. Using thicker gaskets (e.g., 1.8mm) may over-tension the chain or severely affect tensioner operation, making installation difficult. Contact Atomic for questions if running thick gaskets.
- Timing Cover Clearance: You must USE DOWELS ON THE TIMING COVER as per factory assembly. Without dowels, your timing chain guide will likely hit the cover and snap. Every factory casting is slightly different—we strongly recommend using Blu-Tack to confirm a minimum of 2mm guide-to-cover clearance. Check this immediately after installing the tensioner, before the engine is run and the tensioner extends due to oil pressure.
- Break-In Procedure: Upon first start, it may take a few minutes for the hydraulic tensioner to fully take up slack. Do not use high RPM whilst the oil is cold to try speed up the process. You risk excess tension on the chain and forcing the tensioner to lock in an over-tensioned position.
- Failures & Warranty: Failures are VERY rare on these parts (manufacturing defects are lower than 1 in 1000). Harsh tunes, aggressive limiters, and drivetrain problems (high line pressure, harsh shifts, clunky diffs) introduce massive shock into the system that breaks parts. We cannot warranty our products against operation outside of healthy functioning engines.
Technical Specifications
Application: Ford Barra DOHC 4.0L 6-Cyl (BA, BF, FG, FGX)
Power Rating: See notes on oil pressure
Chain Type: Heavy Duty (Double Strength)
*All kits include detailed installation instructions for DIY or professional use.
